S244 WOOD STOVE

CB00001-1

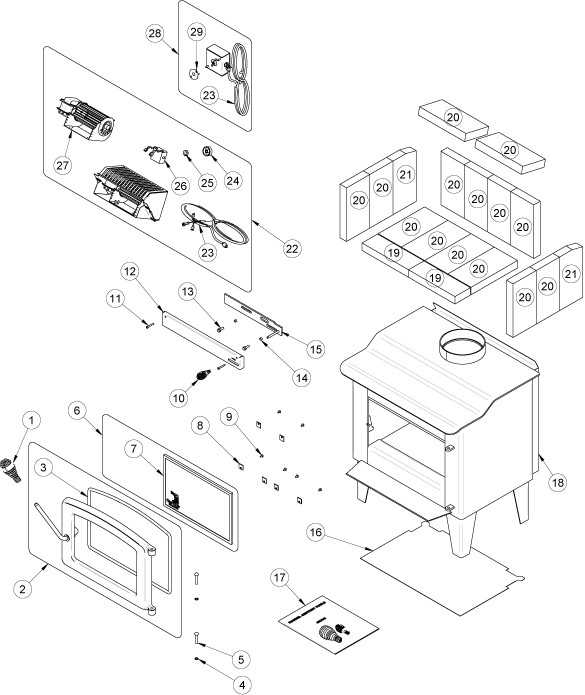

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)Msrp per item*Shipping date
1AC07867
1/2" CHROME COIL HANDLE
1 / appliance (sold individually)
--
2SE24208
CAST IRON DOOR ASSEMBLY
1 / appliance (sold individually)
--
3AC06500
SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
--
430055
HINGE PIN RETAINING RING 5/16"ID x 0.512"OD
2 / appliance (sold individually)
--
530170
HINGE PIN 5/16"Ø x 1 1/2"L
2 / appliance (sold individually)
--
6SE63000
8 1/2" x 13 1/8" GLASS WITH GASKET
1 / appliance (sold individually)
--
7AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
--
8SE63024
GLASS RETAINER WITH SCREWS KIT (10 UNITS)
1 / appliance (sold individually)
--
930124
SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC
6 / appliance (sold individually)
--
10AC07863
1/4" CHROME LONG COIL HANDLE
1 / appliance (sold individually)
--
1130125
MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC
2 / appliance (sold individually)
--
12PL63018
AIR CONTROL COVER
1 / appliance (sold individually)
--
1330094
HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE
2 / appliance (sold individually)
--
1430428
BUSHING
2 / appliance (sold individually)
--
15SE63017
AIR CONTROL DAMPER
1 / appliance (sold individually)
--
16PL63118
BOTTOM HEAT SHIELD
1 / appliance (sold individually)
--
1799998
DISCONTINUED
1 / appliance (sold individually)
--
1899999
BUILD TO ORDER
1 / appliance (sold individually)
--
19PL36027
3" x 9" x 1 1/4" REFRACTORY BRICK
2 / appliance (sold individually)
--
2029010
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK
14 / appliance (sold individually)
--
21PL36019
4 1/2" x 9" x 8 3/8" x 1 7/8" REFRACTORY BRICK
2 / appliance (sold individually)
--
22AC02050
BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM
1 / appliance (sold individually)
--
2360013
POWER CORD 96" x 18-3
2 / appliance (sold individually)
--
2444085
RHEOSTAT KNOB
1 / appliance (sold individually)
--
2544087
RHEOSTAT NUT
1 / appliance (sold individually)
--
2644080
RHEOSTAT WITHOUT NUT (AC-11)
1 / appliance (sold individually)
--
2744073
CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM
1 / appliance (sold individually)
--
28AC02055
QUICK CONNECT THERMODISC
1 / appliance (sold individually)
--
2944028
CERAMIC THERMODISC F110-20F
1 / appliance (sold individually)
--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
