FW3000 WOOD STOVE WITH BLOWER
CB00014-1

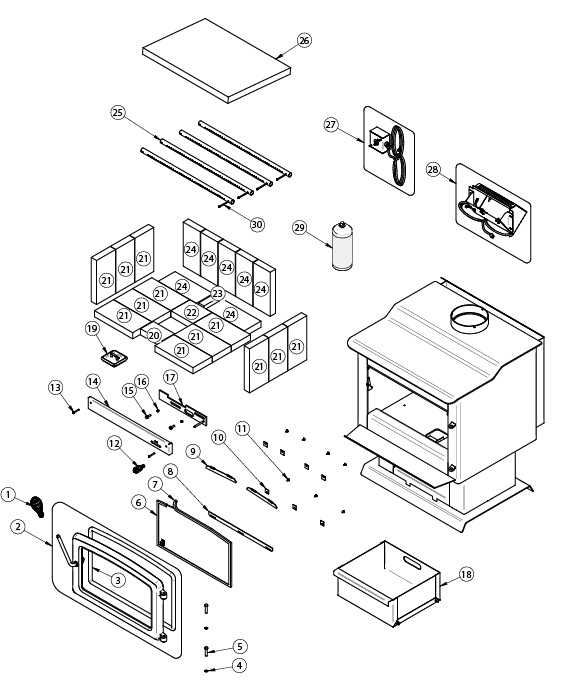

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | -- | ||
| 2 | SE24209 CAST IRON DOOR ASSEMBLY 1 / appliance (sold individually) | -- | ||
| 3 | AC06500 SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | -- | ||
| 4 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | -- | ||
| 5 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | -- | ||
| 6 | SE63001 9 1/16" x 9 9/16" x 17 5/16" ARCHED GLASS WITH GASKET 1 / appliance (sold individually) | -- | ||
| 7 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | -- | ||
| 8 | PL55105 GLASS RETAINER FRAME 1 / appliance (sold individually) | -- | ||
| 9 | PL55106 GLASS RETAINER FRAME 2 / appliance (sold individually) | -- | ||
| 10 | SE63024 GLASS RETAINER WITH SCREWS KIT (10 UNITS) 7 / appliance (sold individually) | -- | ||
| 11 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 7 / appliance (sold individually) | -- | ||
| 12 | AC07863 1/4" CHROME LONG COIL HANDLE 1 / appliance (sold individually) | -- | ||
| 13 | 30125 MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC 2 / appliance (sold individually) | -- | ||
| 14 | PL63058 AIR CONTROL COVER 1 / appliance (sold individually) | -- | ||
| 15 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 2 / appliance (sold individually) | -- | ||
| 16 | 30428 BUSHING 2 / appliance (sold individually) | -- | ||
| 17 | SE63057 AIR CONTROL DAMPER ASSEMBLY 1 / appliance (sold individually) | -- | ||
| 18 | SE08304-03 ASH DRAWER 1 / appliance (sold individually) | -- | ||
| 19 | SE16059 ASH PLUG 1 / appliance (sold individually) | -- | ||
| 20 | PL36257 3" x 5" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | -- | ||
| 21 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 12 / appliance (sold individually) | -- | ||
| 22 | PL36062 4 1/2" x 5 1/4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | -- | ||
| 23 | PL36024 1 7/8" x 4 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | -- | ||
| 24 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 7 / appliance (sold individually) | -- | ||
| 25 | PL63070 SECONDARY AIR TUBE 4 / appliance (sold individually) | -- | ||
| 26 | 21216 VERMICULITE BAFFLE CENTURY 90000161 1 / appliance (sold individually) | -- | ||
| 27 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | -- | ||
| 28 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | -- | ||
| 29 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | -- | ||
| 30 | 30068 STAINLESS STEEL COTTER PIN 1/8" x 1 1/2" 4 / appliance (sold individually) | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
