S128 WOOD STOVE - N.E. - CFM

VP00302

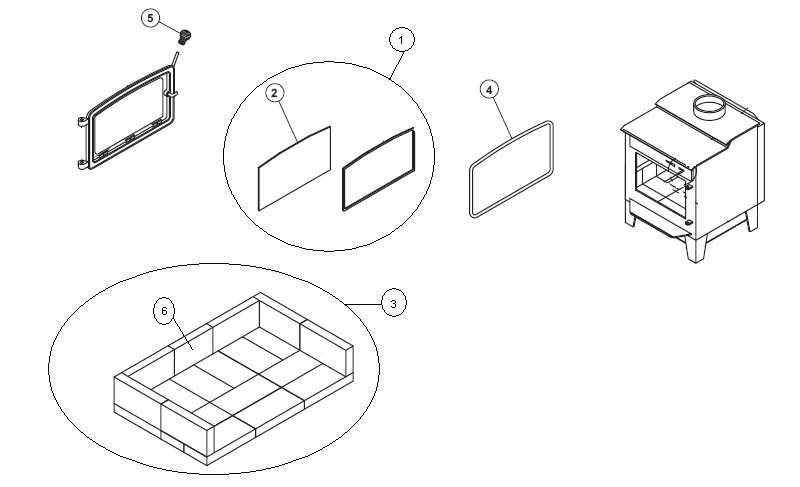

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)Msrp per item*Shipping date
1SE63001
9 1/16" x 9 9/16" x 17 5/16" ARCHED GLASS WITH GASKET
1 / appliance (sold individually)
--
2AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
--
329020
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK HD
18 / appliance (sold individually)
--
4AC06500
SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
--
5AC07867
1/2" CHROME COIL HANDLE
1 / appliance (sold individually)
--
6PL36047
4 1/2" x 6 1/2" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
