FW300006 WOOD STOVE - CFM
VP00314

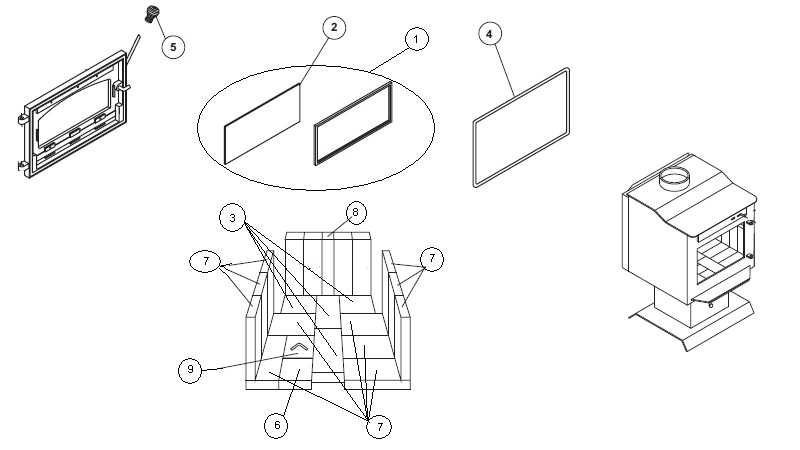

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | SE36322 7" x 16" GLASS WITH GASKET S31113 - S10002 1 / appliance (sold individually) | -- | ||
| 2 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | -- | ||
| 3 | PL36114 4" x 7 3/4" x 1 1/4" REFRACTORY BRICK (AC-SB7.75) 4 / appliance (sold individually) | -- | ||
| 4 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | -- | ||
| 5 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | -- | ||
| 6 | PL36049 4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | -- | ||
| 7 | 29020 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK HD 15 / appliance (sold individually) | -- | ||
| 9 | SE16059 ASH PLUG 1 / appliance (sold individually) | -- | ||
| - | 21216 VERMICULITE BAFFLE CENTURY 90000161 1 / appliance (sold individually) | -- | ||
| - | 30068 STAINLESS STEEL COTTER PIN 1/8" x 1 1/2" 1 / appliance (sold individually) | -- | ||
| - | PL63023 SECONDARY AIR TUBE 1 / appliance (sold individually) | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
