CJW2000L03 WOOD STOVE ON LEGS - CFM
VP00321

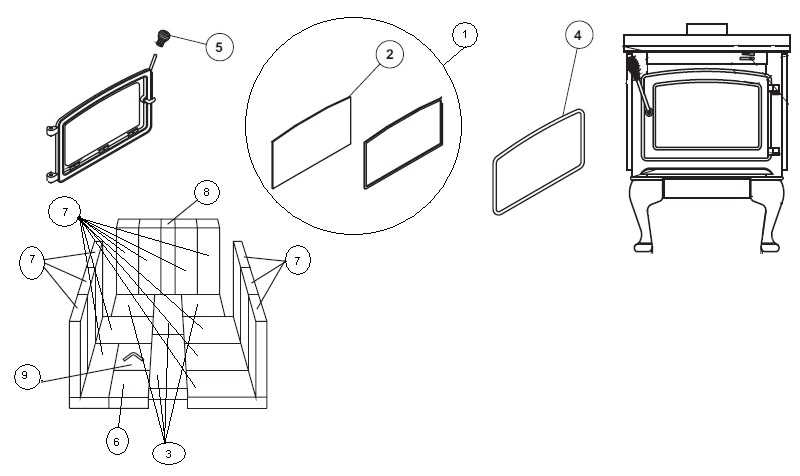

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | SE63001 9 1/16" x 9 9/16" x 17 5/16" ARCHED GLASS WITH GASKET 1 / appliance (sold individually) | -- | ||
| 2 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | -- | ||
| 3 | PL36114 4" x 7 3/4" x 1 1/4" REFRACTORY BRICK (AC-SB7.75) 4 / appliance (sold individually) | -- | ||
| 4 | AC06500 SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | -- | ||
| 5 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | -- | ||
| 6 | PL36049 4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | -- | ||
| 7 | 29020 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK HD 15 / appliance (sold individually) | -- | ||
| 9 | SE16059 ASH PLUG 1 / appliance (sold individually) | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
