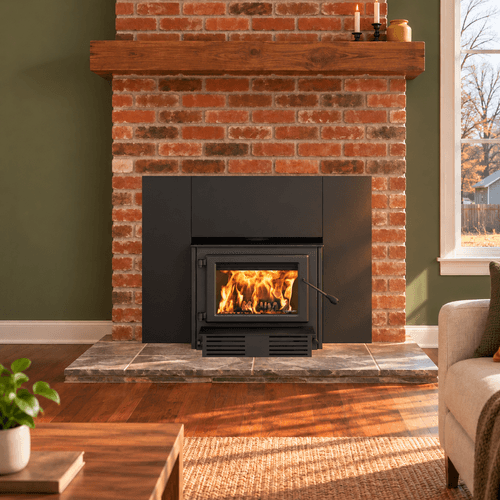

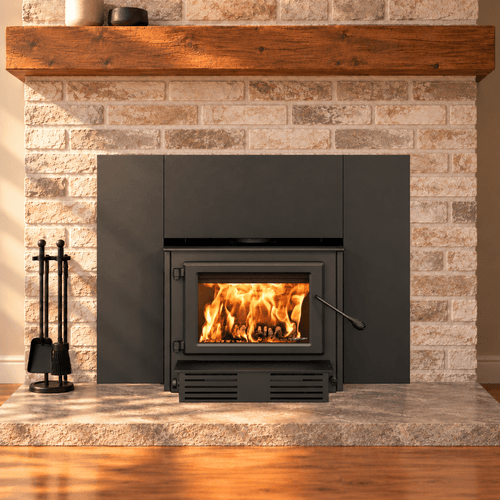

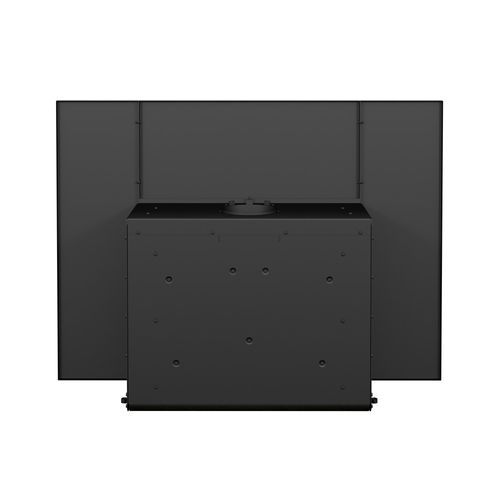

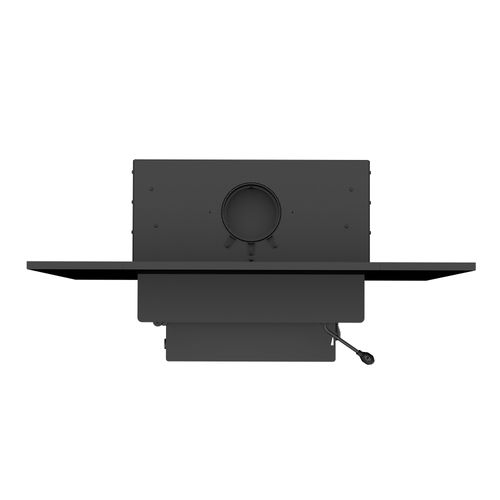

CW2800 Wood insert

CB00030
Be the first to rate this product
n/a
OUT OF STOCK

Get 5% off purchases of $3,000 or more.

Discount automatically applied to cart.

Maximum heat output-dry cordwood
65,000 BTU/h (19 kW)
Dimensions
27 1/4" W X 22 1/4" D X 21 1/4" H
Maximum log length
18" (16" recommended)
Average particulate emission rate
2.4 g/h
Heating area
1,500 - 2,400 ft²
The recommended heating area varies depending on the climatic zones. To validate the values ​​that apply to your place of residence, click here >

DESCRIPTION

  • Mid-size, versatile firebox
  • Reinforced appliance top with a stainless steel heat shield
  • Cast iron door and ceramic glass
  • EPA certified at 2.4 g/h
  • Non-catalytic combustion system
  • Designed and made in Canada
  • Included: 32" x 44" faceplate, air intake damper and 144 CFM blower with thermodisc
icon-gov-incentive
Government incentives
Government incentives may apply to this product. For more details, click here >
  • Mid-size, versatile firebox
  • Reinforced appliance top with a stainless steel heat shield
  • Cast iron door and ceramic glass
  • EPA certified at 2.4 g/h
  • Non-catalytic combustion system
  • Designed and made in Canada
  • Included: 32" x 44" faceplate, air intake damper and 144 CFM blower with thermodisc
See the appliance in my space
icon-gov-incentive
Government incentives
Government incentives may apply to this product. For more details, click here >

ACCESSORIES TO COMPLETE YOUR INSTALLATION

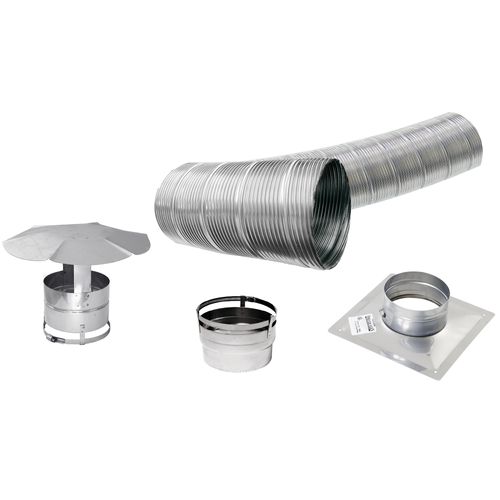

    6"Ø X 25' STAINLESS FLEX LINER KIT FOR INSERTS

    VOLKI-625

    n/a

      6"Ø X 35' STAINLESS FLEX LINER KIT FOR INSERTS

      VOLKI-635

      n/a

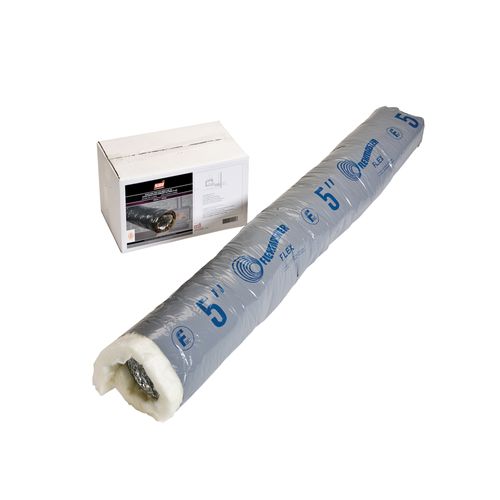

        4' INSULATED FLEX PIPE FOR 5"Ø FRESH AIR INTAKE

        AC02090

        n/a

        SPECIFICATIONS AND MANUALS

        Appliance performance

        Fuel type
        Dry cordwood
        Heating area (3)
        1,500 - 2,400 ft²
        Overall firebox volume
        1.86 ft³
        EPA loading volume
        1.44 ft³
        Maximum burn time (3)
        7 h
        Maximum heat output-dry cordwood (4)
        65,000 BTU/h (19 kW)
        Minimum overall heat output rate (4)(5)
        9,800 BTU/h (2.87 kW)
        Maximum overall heat output rate (4)(5)
        52,200 BTU/h (15.3 kW)
        Average overall efficiency-dry cordwood (HHV) (5)(6)
        68 %
        Average overall efficiency-dry cordwood (LHV) (5)(7)
        73 %
        Optimum efficiency (8)(9)
        76 %
        Optimum heat transfer efficiency (11)
        75 %
        Average particulate emission rate (1)
        2.4 g/h
        Average CO (10)
        103 g/h

        General features

        Steel thickness-body
        3/16"
        Steel thickness-top
        1/4"
        Firebox size (Width)
        19 5/8"
        Firebox size (Height)
        11 7/8"
        Firebox size (Depth)
        13 1/2"
        Maximum log length
        18" (16" recommended)
        Log positioning
        Loading over width
        Firebox lined with refractory bricks
        Yes
        Baffle type
        High quality vermiculite
        Minimum fireplace opening (Width)
        27 1/2"
        Minimum fireplace opening (Height)
        21 1/2"
        Minimum fireplace opening (Depth)
        12 3/4"
        High-efficiency certified appliance
        Yes, EPA 2020 approved
        Canadian Standard (emissions)
        CSA B415.1-10
        USA Standard (emissions)
        EPA
        Canadian Standard (safety)
        ULC S628
        USA Standard (safety)
        UL 1482, UL 737
        Warranty
        Limited 5 years
        Shipping weight
        360 lb (163 kg)

        General features

        Alcove installation approved
        No
        Premium quality blower included (CFM)
        144 CFM included
        Certified according to applicable standards
        CAN/USA accredited laboratory
        Combustion technology
        Non-catalytic
        Stainless-steel secondary-air system
        Yes
        Flue outlet diameter
        6"
        Distance-center of the flue outlet to back unit
        5 3/4"
        Distance-center of the flue outlet to side unit
        12 3/4"
        Recommended chimney diameter
        6"
        Type of chimney
        ULC-S635, CAN/ULC-S640, UL 1777
        Minimum chimney height
        12"
        Overall dimension (Width)
        27 1/4"
        Overall dimension (Height)
        21 1/4"
        Overall dimension (Depth)
        22 1/4"
        Door type
        Single, glass with cast iron frame
        Door opening size (Width)
        17 1/4"
        Door opening size (Height)
        8"
        Glass type
        Ceramic glass
        Glass surface - W x H
        14 7/8" x 9 1/4"
        See more >

        Manuals

        • Installation & Operation Requirements
        • Appliance dimensions
        • Wood insert manual | Safety notifications & general information

        Clearances to combustible materials

        Clearances to combustible materials

        		Canada
        Clearances to combustible materials - Base of the unit to ceiling **84"
        Clearances to combustible materials - Combustible side mantle to unit9"
        Clearances to combustible materials - Combustible top mantle to unit27"
        Clearances to combustible materials - Combustible side wall to unit16"
        Clearances to combustible materials - Floor protection in front of the unit (from door opening) 18"
        Clearances to combustible materials - Top of the unit to a 12" combustible mantle shelf27"

        * Les informations inscrites sur la plaque d'homologation de l'appareil ont toujours préséance sur les informations contenues dans tout autre média publié (manuels, catalogues, circulaires, revues ou sites Web). Consultez le manuel d'installation pour valider tous les dégagements aux matériaux combustibles.
