FW3200 Wood stove

CB00023
Be the first to rate this product
n/a

Get 5% off purchases of $3,000 or more.

Discount automatically applied to cart.

Maximum heat output-dry cordwood
90,000 BTU/h
Dimensions
24 1/4" W X 31 1/4" D X 36 1/8" H
Maximum log length
20" (16" recommended)
Average particulate emission rate
0.95 g/h
Heating area
1,900 - 3,100 ft²
The recommended heating area varies depending on the climatic zones. To validate the values ​​that apply to your place of residence, click here >

DESCRIPTION

  • Extra-large firebox, ideal for large spaces and harsh climates
  • Log loading over depth (north-south)
  • Reinforced appliance top with a C-Cast heat shield
  • Cast iron door and ceramic glass
  • EPA certified at 0.95 g/h
  • Non-catalytic combustion system
  • Designed and made in Canada
  • Included: pedestal, ash lip, air intake damper and rear air deflector
See the appliance in my space
icon-gov-incentive
Government incentives
Government incentives may apply to this product. For more details, click here >
  • Extra-large firebox, ideal for large spaces and harsh climates
  • Log loading over depth (north-south)
  • Reinforced appliance top with a C-Cast heat shield
  • Cast iron door and ceramic glass
  • EPA certified at 0.95 g/h
  • Non-catalytic combustion system
  • Designed and made in Canada
  • Included: pedestal, ash lip, air intake damper and rear air deflector
See the appliance in my space
icon-gov-incentive
Government incentives
Government incentives may apply to this product. For more details, click here >

ACCESSORIES TO COMPLETE YOUR INSTALLATION

    BLACK STEEL HEARTH PAD 46 3/4" x 54"

    AC02788

    n/a

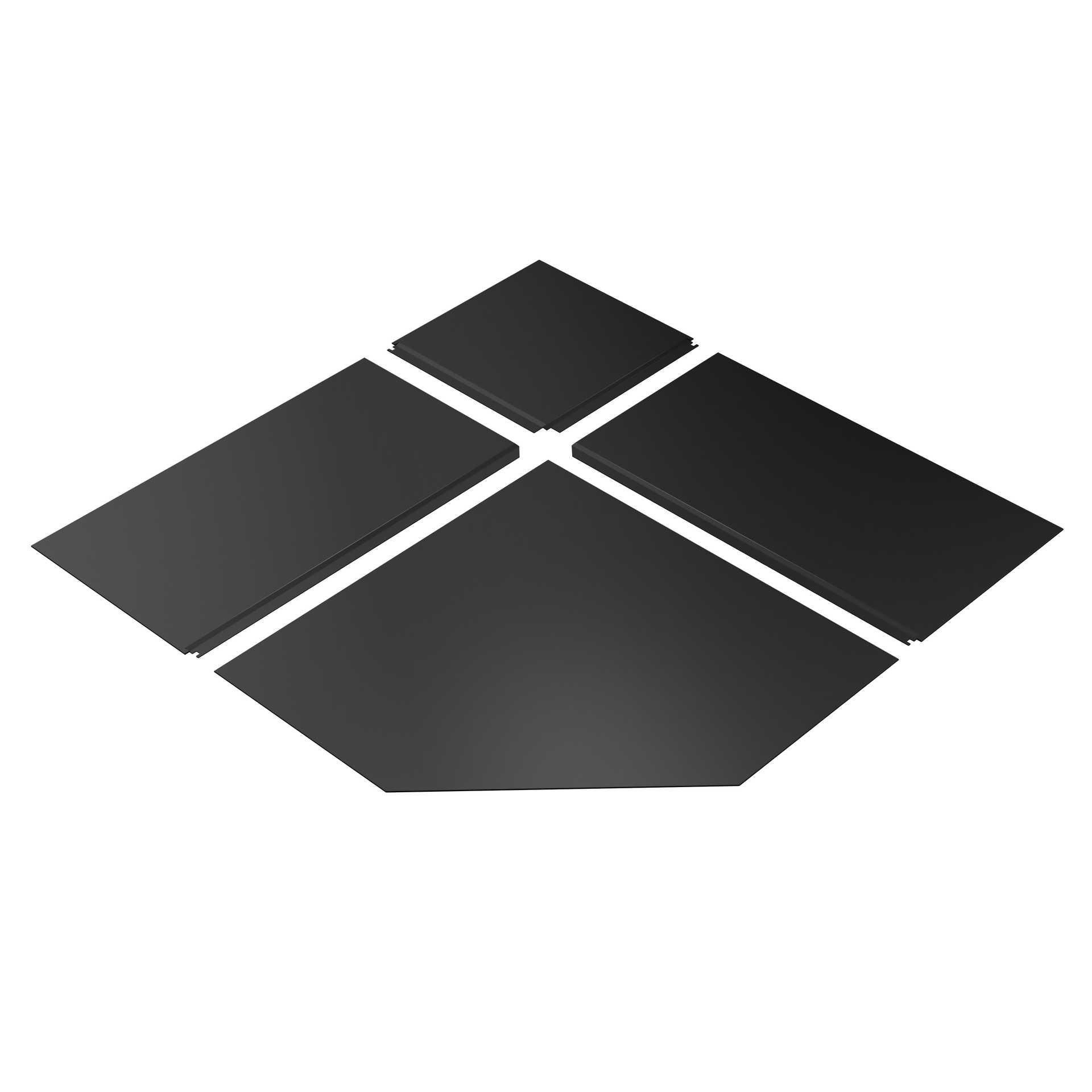

      BLACK STEEL HEARTH PAD 60" - CORNER

      AC02790

      n/a

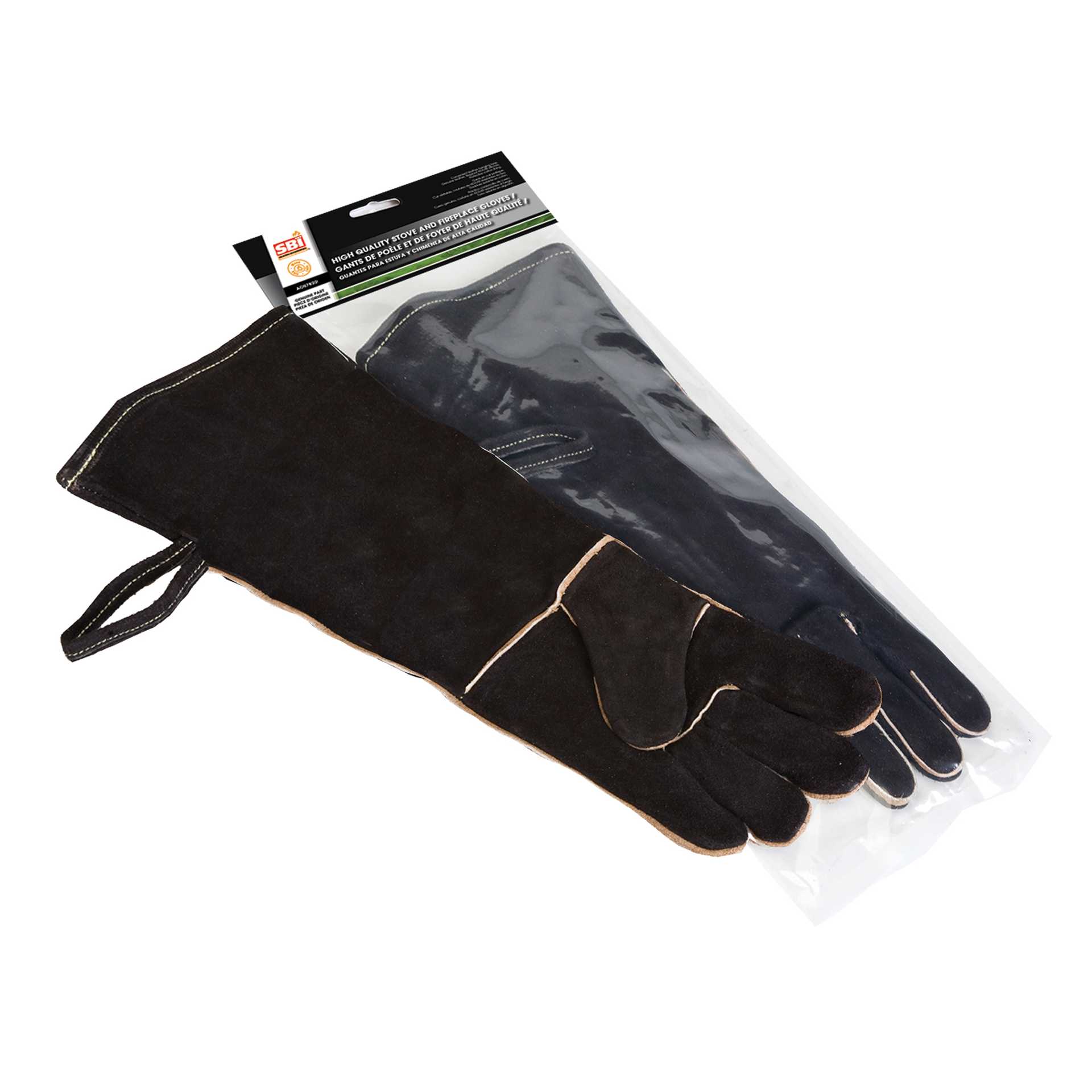

        19" KEVLAR THREAD SEWN FIREPLACE GLOVES

        AC07822

        n/a

        SPECIFICATIONS AND MANUALS

        Appliance performance

        Fuel type
        Dry cordwood
        Heating area (3)
        1,900 - 3,100 ft²
        Overall firebox volume
        3.3 ft³
        EPA loading volume
        2.67 ft³
        Maximum burn time (3)
        10 h
        Maximum heat output-dry cordwood (4)
        90,000 BTU/h
        Minimum overall heat output rate (4)(5)
        15,841 BTU/h (4.64 kW)
        Maximum overall heat output rate (4)(5)
        57,041 BTU/h (16.72 kW)
        Average overall efficiency-dry cordwood (HHV) (5)(6)
        71.10%
        Average overall efficiency-dry cordwood (LHV) (5)(7)
        76.6%
        Optimum efficiency (8)(9)
        78%
        Optimum heat transfer efficiency (11)
        74%
        Average particulate emission rate (1)
        0.95 g/h
        Average CO (10)
        61.3 g/h

        General features

        Glass type
        Ceramic glass
        Glass surface - W x H
        13 7/8" x 11 3/4"
        Steel thickness-body
        3/16"
        Steel thickness-top
        5/16"
        Firebox size (Width)
        19"
        Firebox size (Height)
        14 1/8"
        Firebox size (Depth)
        21"
        Log positioning
        Loading over depth
        Maximum log length
        20" (16" recommended)
        Firebox lined with refractory bricks
        Yes
        Baffle type
        High quality vermiculite
        High-efficiency certified appliance
        Yes, EPA 2020 approved
        Canadian Standard (emissions)
        CSA B415.1-10
        USA Standard (emissions)
        EPA
        Canadian Standard (safety)
        ULC S627
        USA Standard (safety)
        UL 1482, UL 737
        Warranty
        Limited 5 years
        Shipping weight
        359 lb (163 kg)

        General features

        Alcove installation approved
        Yes
        Mobile home approved
        Yes, with fresh air intake
        Certified according to applicable standards
        CAN/USA accredited laboratory
        Overall dimension (Width)
        24 1/4"
        Overall dimension (Height)
        36 1/8"
        Overall dimension (Depth)
        31 1/4"
        Premium quality blower included (CFM)
        Optional
        Combustion technology
        Non-catalytic
        Stainless-steel secondary-air system
        Yes
        Flue outlet diameter
        6"
        Distance-center of the flue outlet to back unit
        7 1/2"
        Distance-center of the flue outlet to side unit
        12 1/8"
        Recommended chimney diameter
        6"
        Type of chimney
        CAN/ULC S629, UL 103 HT (2100 °F)
        Minimum chimney height
        15"
        Door type
        Single, glass with cast iron frame
        Door opening size (Width)
        16"
        Door opening size (Height)
        11 1/8"
        See more >

        Manuals

        Clearances to combustible materials

        Clearances to combustible materials

        		Canada
        Single wall pipeDouble wall pipe
        Clearances to combustible materials - Base of the unit to ceiling84"84"
        Clearances to combustible materials - Back wall14 1/2"14 1/2"
        Clearances to combustible materials - Corner12"12"
        Clearances to combustible materials - Side wall **20"20"

        * Les informations inscrites sur la plaque d'homologation de l'appareil ont toujours préséance sur les informations contenues dans tout autre média publié (manuels, catalogues, circulaires, revues ou sites Web). Consultez le manuel d'installation pour valider tous les dégagements aux matériaux combustibles.
