S244 WOOD STOVE
CB00001

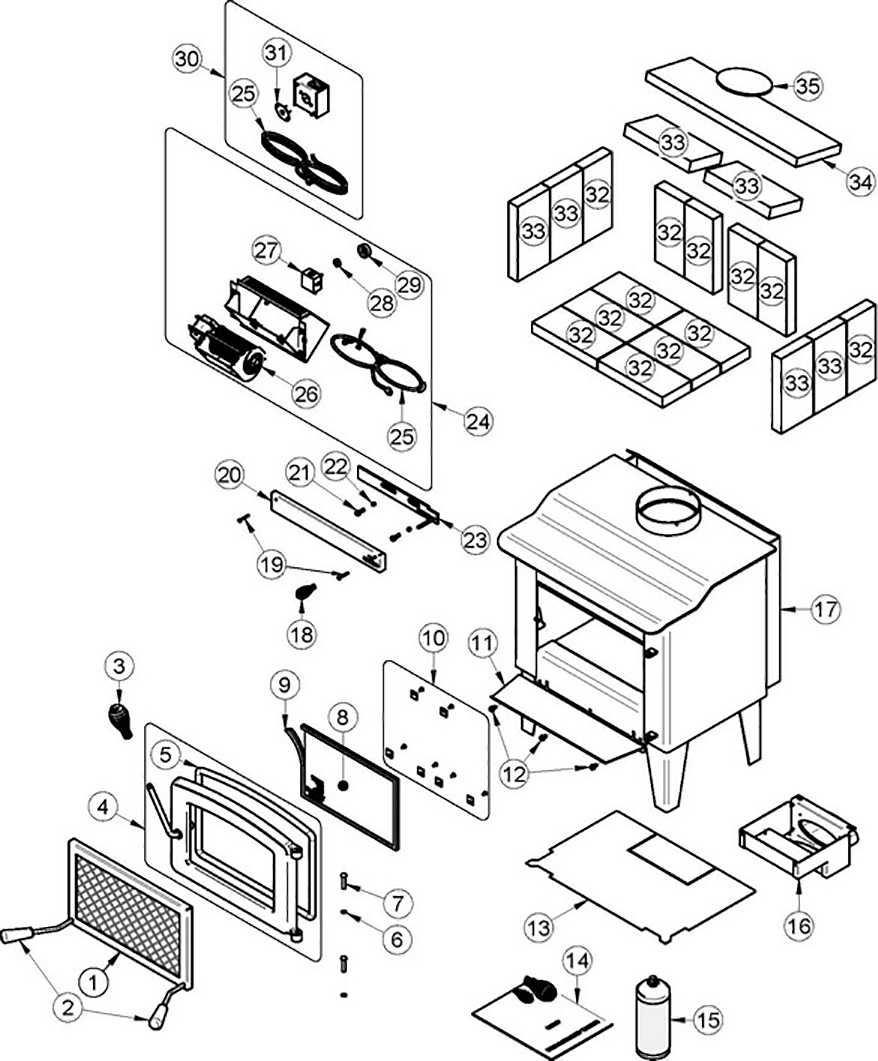

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | AC01318 RIGID FIRESCREEN 1 / appliance (sold individually) | -- | ||
| 2 | 30569 ROUND WOODEN HANDLE BLACK 2 / appliance (sold individually) | -- | ||
| 3 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | -- | ||
| 4 | SE24208 CAST IRON DOOR ASSEMBLY 1 / appliance (sold individually) | -- | ||
| 5 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | -- | ||
| 6 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | -- | ||
| 7 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | -- | ||
| 8 | SE63000 8 1/2" x 13 1/8" GLASS WITH GASKET 1 / appliance (sold individually) | -- | ||
| 9 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | -- | ||
| 10 | SE63024 GLASS RETAINER WITH SCREWS KIT (10 UNITS) 1 / appliance (sold individually) | -- | ||
| 11 | PL63226 ASH LIP 1 / appliance (sold individually) | -- | ||
| 12 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 3 / appliance (sold individually) | -- | ||
| 13 | PL63335 BOTTOM HEAT SHIELD 1 / appliance (sold individually) | -- | ||
| 14 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 15 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | -- | ||
| 16 | AC01331 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | -- | ||
| 17 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 18 | AC07863 1/4" CHROME LONG COIL HANDLE 1 / appliance (sold individually) | -- | ||
| 19 | 30125 MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC 2 / appliance (sold individually) | -- | ||
| 20 | PL63231 AIR DAMPER COVER 1 / appliance (sold individually) | -- | ||
| 21 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 2 / appliance (sold individually) | -- | ||
| 22 | 30428 BUSHING 2 / appliance (sold individually) | -- | ||
| 23 | SE63323 AIR CONTROL DAMPER 1 / appliance (sold individually) | -- | ||
| 24 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | -- | ||
| 25 | 60013 POWER CORD 96" x 18-3 2 / appliance (sold individually) | -- | ||
| 26 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | -- | ||
| 27 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | -- | ||
| 28 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | -- | ||
| 29 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | -- | ||
| 30 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | -- | ||
| 31 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | -- | ||
| 32 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 12 / appliance (sold individually) | -- | ||
| 33 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 6 / appliance (sold individually) | -- | ||
| 34 | 21386 BACK INSULATION BAFFLE 1 / appliance (sold individually) | -- | ||
| 35 | PL63339 BAFFLE INSULATION WEIGHT 1 / appliance (sold individually) | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
