FW3300 WOOD STOVE
CB00008

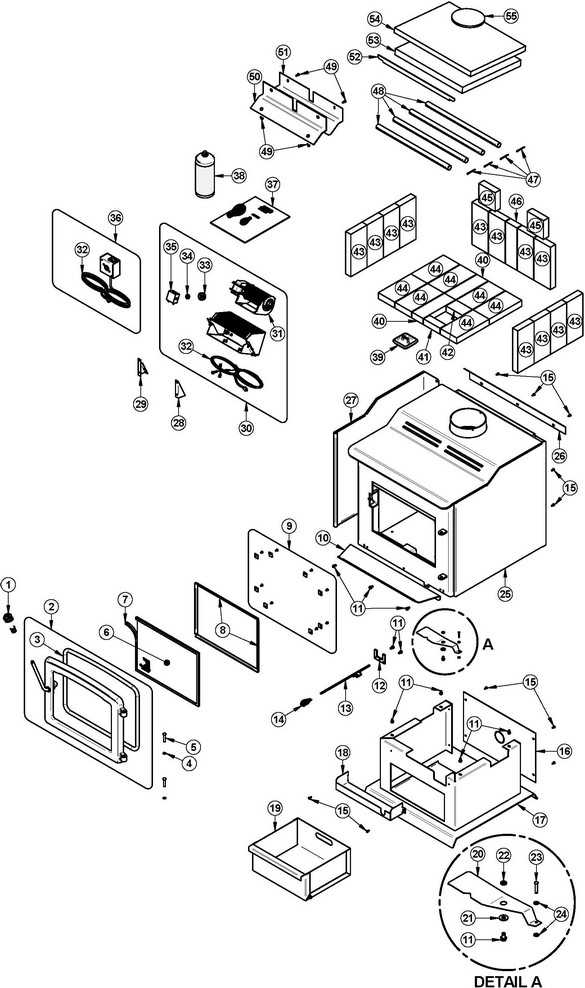

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | -- | ||
| 2 | SE24257 CAST IRON DOOR WITH HANDLE AND GASKET 1 / appliance (sold individually) | -- | ||
| 3 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | -- | ||
| 4 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | -- | ||
| 5 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | -- | ||
| 6 | SE54132 11 1/4" x 15 3/8" GLASS WITH GASKET 1 / appliance (sold individually) | -- | ||
| 7 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | -- | ||
| 8 | PL54102 GLASS RETAINER FRAME 2 / appliance (sold individually) | -- | ||
| 9 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | -- | ||
| 10 | PL54111 ASH LIP 1 / appliance (sold individually) | -- | ||
| 11 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 10 / appliance (sold individually) | -- | ||
| 12 | PL54119 AIR CONTROL ROD GUIDE 1 / appliance (sold individually) | -- | ||
| 13 | SE54125 AIR CONTROL ROD ASSEMBLY 1 / appliance (sold individually) | -- | ||
| 14 | AC07863 1/4" CHROME LONG COIL HANDLE 1 / appliance (sold individually) | -- | ||
| 15 | 30131 BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX 13 / appliance (sold individually) | -- | ||
| 16 | SE54104 REAR PEDESTAL PANEL 1 / appliance (sold individually) | -- | ||
| 17 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 18 | PL54134 AIR CONTROL COVER 1 / appliance (sold individually) | -- | ||
| 19 | SE08304-03 ASH DRAWER 1 / appliance (sold individually) | -- | ||
| 20 | PL54029 AIR CONTROL PLATE 1 / appliance (sold individually) | -- | ||
| 21 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | -- | ||
| 22 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | -- | ||
| 23 | 30064 3/16" x 1" CLEVIS PIN 1 / appliance (sold individually) | -- | ||
| 24 | 30059 5/32" I⌀ PUSHNUT 2 / appliance (sold individually) | -- | ||
| 25 | PL54128 RIGHT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | -- | ||
| 26 | PL54131 REAR DEFLECTOR 1 / appliance (sold individually) | -- | ||
| 27 | PL54129 LEFT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | -- | ||
| 28 | PL06748-01 LEFT HAND SIDE BLOWER SUPPORT 1 / appliance (sold individually) | -- | ||
| 29 | PL06748 RIGHT HAND SIDE BLOWER SUPPORT 1 / appliance (sold individually) | -- | ||
| 30 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | -- | ||
| 31 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | -- | ||
| 32 | 60013 POWER CORD 96" x 18-3 2 / appliance (sold individually) | -- | ||
| 33 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | -- | ||
| 34 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | -- | ||
| 35 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | -- | ||
| 36 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | -- | ||
| 37 | SE45631 FW3300 INSTRUCTION MANUAL KIT 1 / appliance (sold individually) | -- | ||
| 39 | SE16059 ASH PLUG 1 / appliance (sold individually) | -- | ||
| 40 | PL36101 2 3/4" x 8" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | -- | ||
| 41 | PL36082 1 1/4" x 4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | -- | ||
| 42 | PL36074 4" x 2 1/2" x 1 1/4" REFRACTORY BRICK (AC-SB2.5) 1 / appliance (sold individually) | -- | ||
| 43 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 12 / appliance (sold individually) | -- | ||
| 44 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 7 / appliance (sold individually) | -- | ||
| 45 | PL36048 4" x 4" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | -- | ||
| 46 | PL36099 2 1/4" x 9" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | -- | ||
| 47 | SE36250 1/8" x 1 1/2" STAINLESS STEEL COTTER PIN (12 UNITS) 1 / appliance (sold individually) | -- | ||
| 48 | PL54024 SECONDARY AIR TUBE 4 / appliance (sold individually) | -- | ||
| 49 | 30026 THREAD CUTTING SCREW 10-24 F 5/8" HEX WASHER HEAD 4 / appliance (sold individually) | -- | ||
| 50 | 21122 TOP AIR DEFLECTOR INSULATION 1 / appliance (sold individually) | -- | ||
| 51 | PL54054 PROTECTOR PLATE FOR PRIMARY AIR DEFLECTOR 1 / appliance (sold individually) | -- | ||
| 52 | PL54053 FRONT BAFFLE SUPPORT 1 / appliance (sold individually) | -- | ||
| 53 | 21206 16 1/2" X 14" X 1 1/4" VERMICULITE BAFFLE 1 / appliance (sold individually) | -- | ||
| 54 | 21121 18 3/4" x 13 1/2" x 1" BAFFLE INSULATION 1 / appliance (sold individually) | -- | ||
| 55 | PL34026 BAFFLE INSULATION WEIGHT 1 / appliance (sold individually) | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
