S244 WOOD STOVE WITH BLOWER
CB00011-2

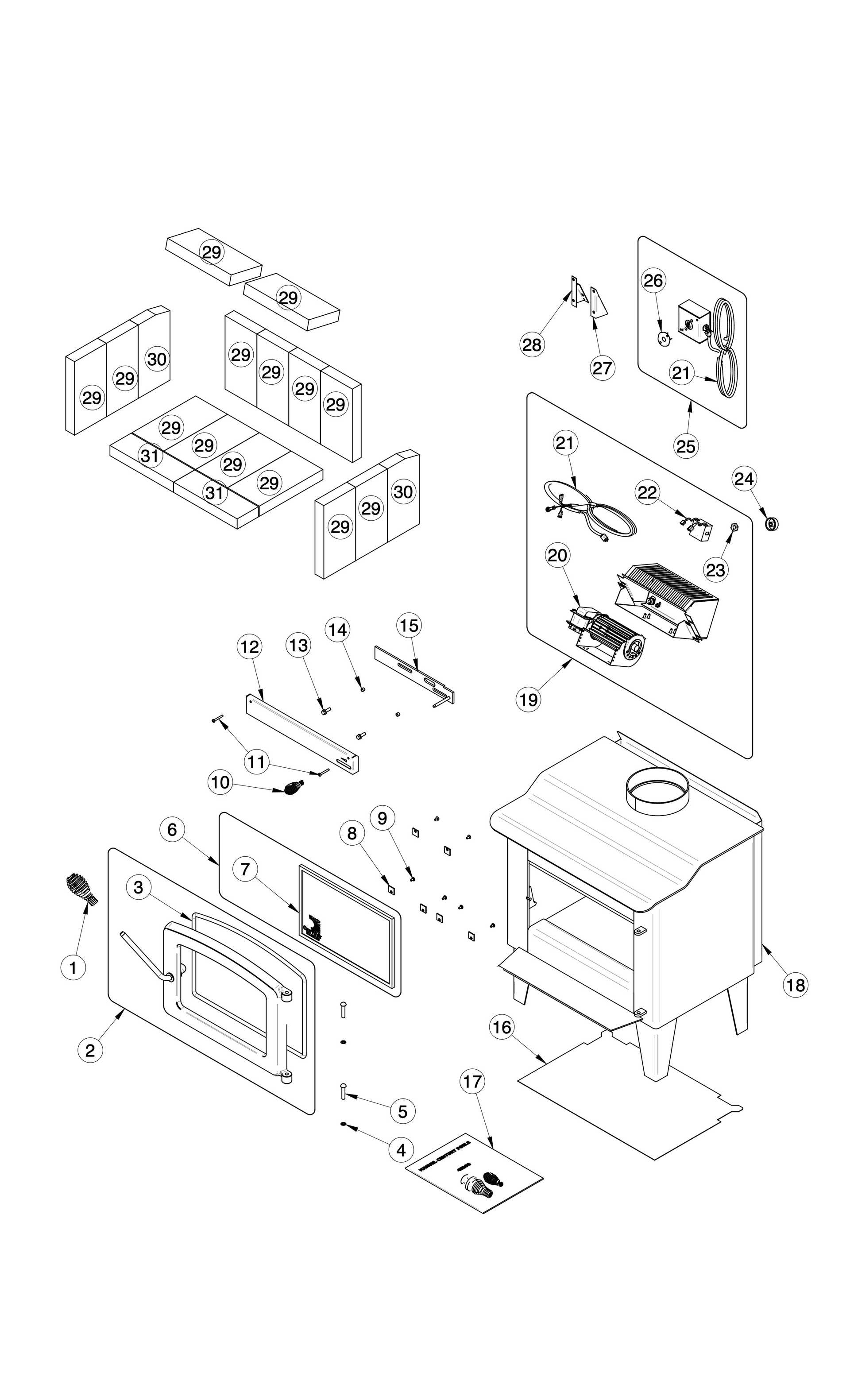

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | -- | ||
| 2 | SE24208 CAST IRON DOOR ASSEMBLY 1 / appliance (sold individually) | -- | ||
| 3 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | -- | ||
| 4 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | -- | ||
| 5 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | -- | ||
| 6 | SE63000 8 1/2" x 13 1/8" GLASS WITH GASKET 1 / appliance (sold individually) | -- | ||
| 7 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | -- | ||
| 8 | SE63024 GLASS RETAINER WITH SCREWS KIT (10 UNITS) 1 / appliance (sold individually) | -- | ||
| 9 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 6 / appliance (sold individually) | -- | ||
| 10 | AC07863 1/4" CHROME LONG COIL HANDLE 1 / appliance (sold individually) | -- | ||
| 11 | 30125 MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC 2 / appliance (sold individually) | -- | ||
| 12 | PL63018 AIR CONTROL COVER 1 / appliance (sold individually) | -- | ||
| 13 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 2 / appliance (sold individually) | -- | ||
| 14 | 30428 BUSHING 2 / appliance (sold individually) | -- | ||
| 15 | SE63017 AIR CONTROL DAMPER 1 / appliance (sold individually) | -- | ||
| 16 | PL63118 BOTTOM HEAT SHIELD 1 / appliance (sold individually) | -- | ||
| 17 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 18 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | ||
| 19 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | -- | ||
| 20 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | -- | ||
| 21 | 60013 POWER CORD 96" x 18-3 2 / appliance (sold individually) | -- | ||
| 22 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | -- | ||
| 23 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | -- | ||
| 24 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | -- | ||
| 25 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | -- | ||
| 26 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | -- | ||
| 27 | PL06748-01 LEFT HAND SIDE BLOWER SUPPORT 1 / appliance (sold individually) | -- | ||
| 28 | PL06748 RIGHT HAND SIDE BLOWER SUPPORT 1 / appliance (sold individually) | -- | ||
| 29 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 14 / appliance (sold individually) | -- | ||
| 30 | PL36019 4 1/2" x 9" x 8 3/8" x 1 7/8" REFRACTORY BRICK 2 / appliance (sold individually) | -- | ||
| 31 | PL36027 3" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
