FW2600 WOOD STOVE
CB00018

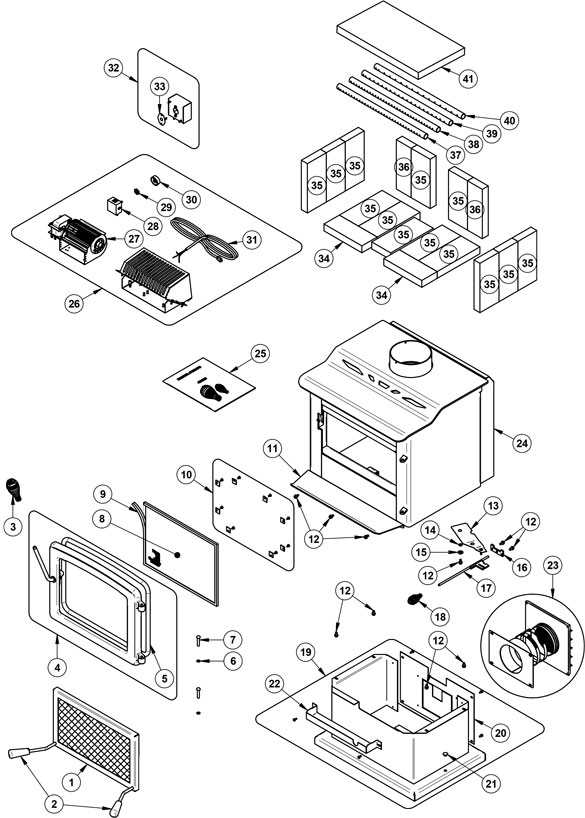

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | AC01342 RIGID FIRESCREEN 1 / appliance (sold individually) | -- | ||
| 2 | 30569 ROUND WOODEN HANDLE BLACK 2 / appliance (sold individually) | -- | ||
| 3 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | -- | ||
| 4 | SE24257 CAST IRON DOOR WITH HANDLE AND GASKET 1 / appliance (sold individually) | -- | ||
| 5 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | -- | ||
| 6 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | -- | ||
| 7 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | -- | ||
| 8 | SE54132 11 1/4" x 15 3/8" GLASS WITH GASKET 1 / appliance (sold individually) | -- | ||
| 9 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | -- | ||
| 10 | SE63024 GLASS RETAINER WITH SCREWS KIT (10 UNITS) 1 / appliance (sold individually) | -- | ||
| 11 | PL54631 ASH LIP 1 / appliance (sold individually) | -- | ||
| 12 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 10 / appliance (sold individually) | -- | ||
| 13 | PL54697 PRIMARY AIR CONTROL PLATE 1 / appliance (sold individually) | -- | ||
| 14 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | -- | ||
| 15 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | -- | ||
| 16 | PL65572 AIR CONTROL ROD GUIDE 1 / appliance (sold individually) | -- | ||
| 17 | SE54634 AIR CONTROL ROD ASSEMBLY 1 / appliance (sold individually) | -- | ||
| 18 | 30429 3/8" NICKEL COIL HANDLE 1 / appliance (sold individually) | -- | ||
| 19 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | ||
| 20 | PL54655 BACK BASE 1 / appliance (sold individually) | -- | ||
| 21 | 30418 FINISHING PLUG 3/8" 2 / appliance (sold individually) | -- | ||
| 22 | PL54641 OUTSIDE FRONT AIR CAP 1 / appliance (sold individually) | -- | ||
| 23 | AC01336 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | -- | ||
| 24 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | ||
| 25 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 26 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | -- | ||
| 27 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | -- | ||
| 28 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | -- | ||
| 29 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | -- | ||
| 30 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | -- | ||
| 31 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | -- | ||
| 32 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | -- | ||
| 33 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | -- | ||
| 34 | PL36119 3 1/2" x 8" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | -- | ||
| 35 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 13 / appliance (sold individually) | -- | ||
| 36 | PL36027 3" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | -- | ||
| 37 | PL54512 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | -- | ||
| 38 | PL54513 MIDDLE FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | -- | ||
| 39 | PL54514 MIDDLE REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | -- | ||
| 40 | PL54515 REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | -- | ||
| 41 | 21397 17 1/8" x 9 3/4" x 1 1/4" BAFFLE VERMICULITE BOARD 1 / appliance (sold individually) | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
