FW2800
CB00021-1

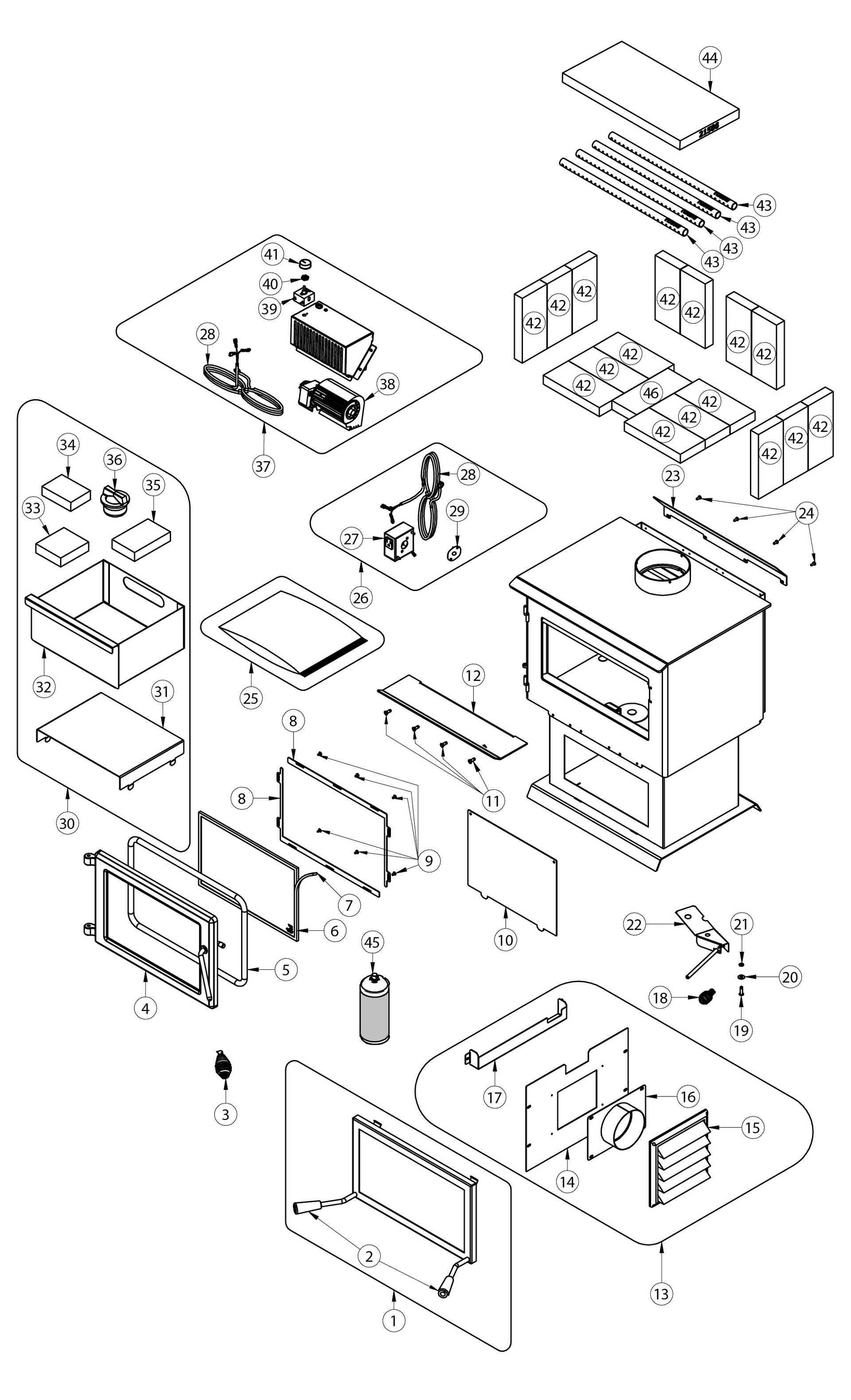

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | AC01299 RIGID FIRESCREEN 1 / appliance (sold individually) | -- | ||
| 2 | 30898 BLACK ROUND WOODEN HANDLE 2 / appliance (sold individually) | -- | ||
| 3 | AC07868 1/2" BLACK COIL HANDLE 1 / appliance (sold individually) | -- | ||
| 4 | SE24346 CENTURY DOOR ASSEMBLY 1 / appliance (sold individually) | -- | ||
| 5 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | -- | ||
| 6 | SE74009 15 3/4"W x 10 1/8"H GLASS WITH GASKET 1 / appliance (sold individually) | -- | ||
| 7 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | -- | ||
| 8 | PL74017 GLASS RETAINER 2 / appliance (sold individually) | -- | ||
| 9 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 6 / appliance (sold individually) | -- | ||
| 10 | PL74047 PEDESTAL FRONT COVER 1 / appliance (sold individually) | -- | ||
| 11 | 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4" 4 / appliance (sold individually) | -- | ||
| 12 | PL74003 ASH LIP 1 / appliance (sold individually) | -- | ||
| 13 | AC02081 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | -- | ||
| 14 | PL74054 BACK OF THE BASE 1 / appliance (sold individually) | -- | ||
| 15 | 49028 5" WHITE AIR INTAKE TERMINATION 1 / appliance (sold individually) | -- | ||
| 16 | SE65598 AIR INTAKE ADAPTER 1 / appliance (sold individually) | -- | ||
| 17 | PL74055 DECORATIVE PLATE 1 / appliance (sold individually) | -- | ||
| 18 | AC07869 3/8" BLACK COIL HANDLE 1 / appliance (sold individually) | -- | ||
| 19 | 30506 BLACK SCREW PAN TORX TYPE F 1/4-20 x 1" 1 / appliance (sold individually) | -- | ||
| 20 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | -- | ||
| 21 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | -- | ||
| 22 | SE70618 AIR CONTROL DAMPER ASSEMBLY 1 / appliance (sold individually) | -- | ||
| 23 | PL74050 AIR DEFLECTOR 1 / appliance (sold individually) | -- | ||
| 24 | 30154 BLACK ZINC SCREW #10 x 5/8" QUADREX #2 TYPE A 4 / appliance (sold individually) | -- | ||
| 25 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 26 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | -- | ||
| 27 | PL05530-02 THERMODISC BOX (COVER) 1 / appliance (sold individually) | -- | ||
| 28 | 60013 POWER CORD 96" x 18-3 2 / appliance (sold individually) | -- | ||
| 29 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | -- | ||
| 30 | AC01099 ASH DRAWER KIT 1 / appliance (sold individually) | -- | ||
| 31 | PL74004 DRAWER GUIDE 1 / appliance (sold individually) | -- | ||
| 32 | PL74056 ASH DRAWER 1 / appliance (sold individually) | -- | ||
| 33 | 29004 4" x 4 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | -- | ||
| 34 | PL36760 3 1/4" x 4 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | -- | ||
| 35 | PL36274 3 5/8" x 5 3/4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | -- | ||
| 36 | 24096 ROUND CAST IRON ASH PLUG 1 / appliance (sold individually) | -- | ||
| 37 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | -- | ||
| 38 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | -- | ||
| 39 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | -- | ||
| 40 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | -- | ||
| 41 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | -- | ||
| 42 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 17 / appliance (sold individually) | -- | ||
| 43 | PL70516 SECONDARY AIR TUBE 4 / appliance (sold individually) | -- | ||
| 44 | 21586 18 7/8" x 9 1/2" x 1 1/4" VERMICULITE BAFFLE 1 / appliance (sold individually) | -- | ||
| 45 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | -- | ||
| 46 | PL74014 3 5/8" x 9" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
