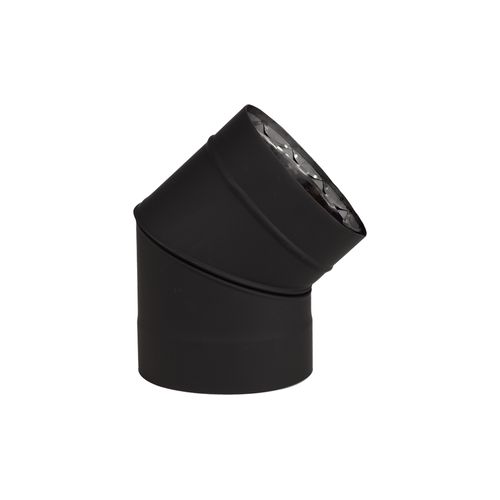

45° ELBOW 6" VORTEX DOUBLE WALL
VOD0090

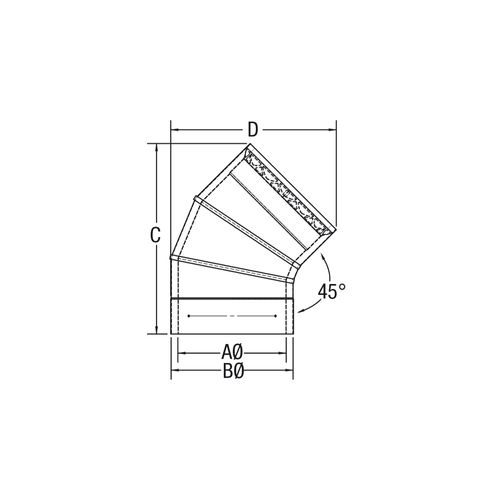

Used when an offset is needed. • Easy-to-connect parts to simplify installation. • The stainless-steel wall features an exclusive thermal weave that promotes even airflow and lower outer wall temperatures. • Metallic black powder coat, which gives a good aesthetic appearance and helps to resist corrosion. • Laser welding: the different parts of the connection system are assembled by laser welding. This provides discreet, solid and durable joints. • Complies with NFPA 211, CSA B365, UL 103 HT and ULCS629 Standards. **Dimensions** AØ : 6" BØ : 7" C : 10.5" D : 9"
